STR-Y6476, STR-Y6400 Power IC

STR-Y6476 Description

STR-Y6400 Series Power IC for Quasi-Resonant Type Switching Power Supply with High Efficiency, Low Noise and Low Standby Power in Full Load Range The STR-Y6400 series products are power ICs for quasi-resonant switching type power supplies, incorporating a power MOSFET and a controller IC.

STR-Y6476 Features

* TO-220F-7 Multi-Mode Control The operation mode switching with four steps according to load conditions achieves the optimal high efficiency and low noise power supply systems across the full load range. In Standby: Auto Standby (Auto Burst-Oscillation) Under Low to Middle Load Conditions: 1 or 2 B

STR-Y6476 Applications

* Switching Power Supplies for Digital Consumer Equipment; LCD-TVs, BD/DVD Players/Recorders, etc. , Home Appliance (White Goods), OA Equipments, Industry Machines, Communication Devices, Others
* Product Lineup Product No. STR-Y6453 650 STR-Y6456 STR-Y6473 850 STR-Y6476 1.3 0.73 3.6 MOSFET VDSS(M

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STR-Y6476, STR-Y6400. Please refer to the document for exact specifications by model.

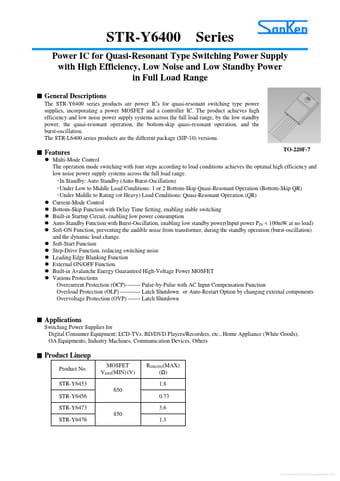

datasheet Preview Page 2

Datasheet Details

Part number
STR-Y6476, STR-Y6400
Manufacturer
Sanken ↗
File Size
256.61 KB
Datasheet
STR-Y6400_Sanken.pdf
Description
Power IC
Note
This datasheet PDF includes multiple part numbers: STR-Y6476, STR-Y6400.
Please refer to the document for exact specifications by model.
