STR-Y6476

Power IC for Quasi-Resonant Type Switching Power Supply

STR-Y6476 Features

* Multi operation mode The operation mode switching with four steps according to load conditions achieves the optimal high efficiency and low noise power supply systems across the full range of loads.

* Current mode control method

* The built-in startup circuit reduces the power consumpt

STR-Y6476 General Description

The STR-Y6476 is power IC for quasi-resonant switching type power supplies, incorporating a power MOSFET and a controller IC. The product is automatically switched to the quasi resonant operation, one bottom skip quasi resonant operation and two bottom skip operation in normal operation, and to the.

STR-Y6476 Datasheet (655.96 KB)

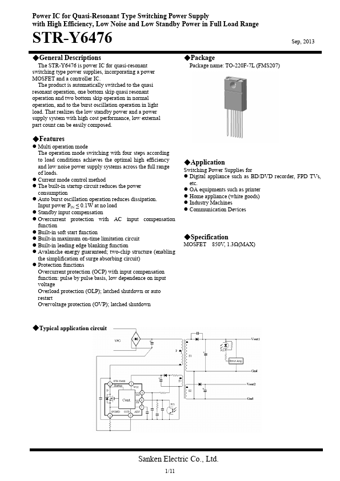

Preview of STR-Y6476 PDF

Datasheet Details

Part number:

STR-Y6476

Manufacturer:

Sanken ↗

File Size:

655.96 KB

Description:

Power ic for quasi-resonant type switching power supply.
Power IC for Quasi-Resonant Type Switching Power Supply with High Efficiency, Low Noise and Low Standby Power in Full Load Range STR-Y6476 Sep, 2013 .
