STR2W153D, STR2W152D Current Mode Control PWM Regulator

STR2W153D Description

STR2W152D and STR2W153D Current Mode Control PWM Regulator ICs For Switching Power Supplies .
The STR2W152D and STR2W153D are power ICs for switching power supplies, incorporating a power MOSFET and a current mode PWM controller IC in one packa.

STR2W153D Features

* Current mode PWM control
* Built-in Random Switching function: reduces EMI noise, simplifies EMI filters, and cuts cost by external part reduction
* Built-in Slope Compensation function: avoids subharmonic oscillation
* Built-in Leading Edge Blanking (LEB) function

STR2W153D Applications

* Switching power supplies for electronic devices such as:
* Home appliances
* Digital appliances
* Office automation (OA) equipment
* Industrial apparatus
* Communication facilities Not to scale D1 VAC C1 Typical Application CRD Clamp Snubber Circuit D4 T1

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STR2W153D, STR2W152D. Please refer to the document for exact specifications by model.

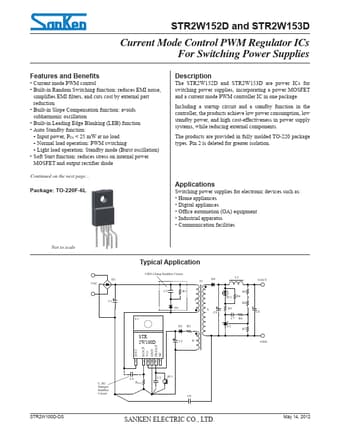

datasheet Preview Page 2 datasheet Preview Page 3
