103-4505-7040, 103-4505-7 Datasheet - Sanyo Denki

103-4505-7040 5-phase stepping motor

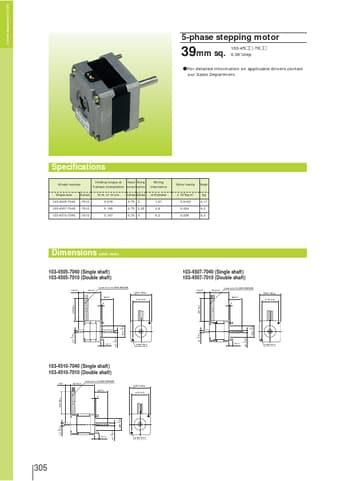

5-phase stepping motor (0.36) 5-phase stepping motor 39 103-45 -70 mm sq. 0.36˚/step For detailed information on applicable drivers,contact our Sales Department. Specifications Model number Holding torque at Rated Wiring Wiring 5-phase energization current resistance inductance Single-axis Dual-axis 103-4505-7040 -7010 103-4507-7040 -7010 103-4510-7040 -7010 N.m or more 0.078 0.108 0.167 A/phase Ω/phase 0.75 2 0.75 2.35 0.75 3 mH/phase 1.97 3.8 6.2 Rotor inertia Weight x 10-4kg-m2 0..

103-4505-7-SanyoSenki.pdf

103-4505-7040 Datasheet Preview — This datasheet PDF includes multiple part numbers: 103-4505-7040, 103-4505-7. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

103-4505-7040, 103-4505-7

Manufacturer:

Sanyo Denki

File Size:

68.83 KB

Description:

5-phase stepping motor.

Note:

This datasheet PDF includes multiple part numbers: 103-4505-7040, 103-4505-7.
Please refer to the document for exact specifications by model.
