103-4507-7040 Datasheet - Sanyo Denki

103-4507-7040 5-phase stepping motor

5-phase stepping motor (0.36) 5-phase stepping motor 39 103-45 -70 mm sq. 0.36˚/step For detailed information on applicable drivers,contact our Sales Department. Specifications Model number Holding torque at Rated Wiring Wiring 5-phase energization current resistance inductance Single-axis Dual-axis 103-4505-7040 -7010 103-4507-7040 -7010 103-4510-7040 -7010 N.m or more 0.078 0.108 0.167 A/phase Ω/phase 0.75 2 0.75 2.35 0.75 3 mH/phase 1.97 3.8 6.2 Rotor inertia Weight x 10-4kg-m2 0..

103-4507-7040 Datasheet (68.83 KB)

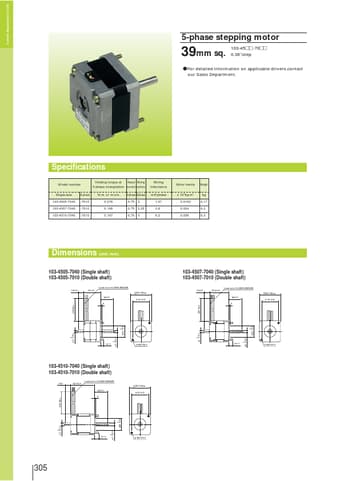

Preview of 103-4507-7040 PDF
103-4507-7040 Datasheet Preview Page 2

Datasheet Details

Part number:

103-4507-7040

Manufacturer:

Sanyo Denki

File Size:

68.83 KB

Description:

5-phase stepping motor.
