103-7566-7041 Datasheet - Sanyo Denki

103-7566-7041 5-phase stepping motor

5-phase stepping motor (0.45) 5-phase stepping motor 60 103-7566-70 mm cir. 0.45˚/step For detailed information on applicable drivers,contact our Sales Department. Specifications Model number Holding torque at Rated Wiring Wiring 5-phase energization current resistance inductance Single-axis Dual-axis 103-7566-7041 -7011 N.m or more 0.91 A/phase Ω/phase 0.75 4.8 mH/phase 23 Rotor inertia Weight x 10-4kg-m2 0.235 kg 1.1 Dimensions (unit: mm) 103-7566-7041 (Single shaft) 103-7566-70.

103-7566-7041-SanyoSenki.pdf

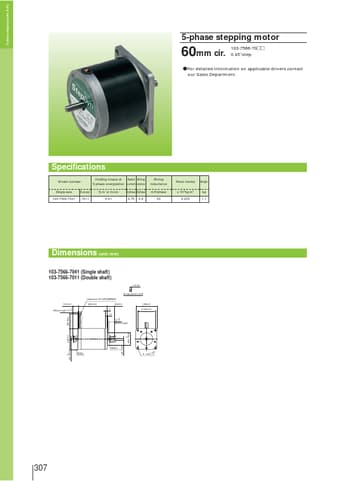

Preview of 103-7566-7041 PDF
103-7566-7041 Datasheet Preview Page 2

Datasheet Details

Part number:

103-7566-7041

Manufacturer:

Sanyo Denki

File Size:

60.15 KB

Description:

5-phase stepping motor.
