103-7556-50V2, 103-4510-54V2 Datasheet - Sanyo Denki

103-7556-50V2 Ultra-high vacuum stepping motor

In-vacuum stepping motor Ultra-high vacuum stepping motors For environment in 10-8Pa (For reference). 103H103- -5 V -5 V For detailed information on applicable drivers,contact our Sales Department. Specifications Model Number Number Basic step of phases angle Holding Rated Wiring Wiring torque current resistance inductance N.m or more A/phase Ω/phase mH/phase 103-4510-54V2 5 0.36˚ 0.14 1.5 0.89 0.87 103-7556-50V2 5 0.45˚ 0.26 0.75 2.5 7 103-7501-52V1 5 0.72˚ 0.39 1.5 0.79 1.5 .

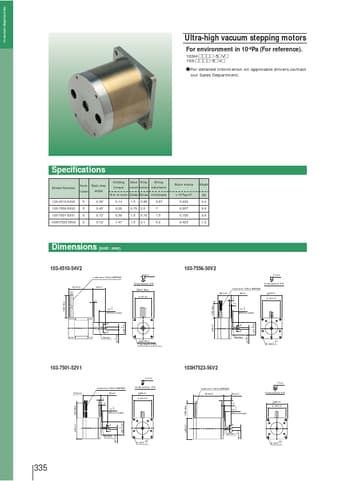

103-4510-54V2-SanyoDenki.pdf

103-7556-50V2 Datasheet Preview — This datasheet PDF includes multiple part numbers: 103-7556-50V2, 103-4510-54V2. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

103-7556-50V2, 103-4510-54V2

Manufacturer:

Sanyo Denki

File Size:

71.49 KB

Description:

Ultra-high vacuum stepping motor.

Note:

This datasheet PDF includes multiple part numbers: 103-7556-50V2, 103-4510-54V2.
Please refer to the document for exact specifications by model.
