LA4225 Datasheet - Sanyo Electric

LA4225 5W Monaural Power Amplifier

www.DataSheet4U.com Ordering number : ENA0318 Monolithic Linear IC LA4225 Overview Audio Output for TV application 5W Monaural Power Amplifier LA4225 is a 5W monaural power amplifier intended for television audio output. This IC requires only two external components (capacitors) to construct amplifiers and is ideal for realizing substantial cost reduction of electronic devices. Functions 5W monaural power amplifier (VCC = 18V, RL = 8Ω) Full complement of protection cir.

LA4225_SanyoElectric.pdf

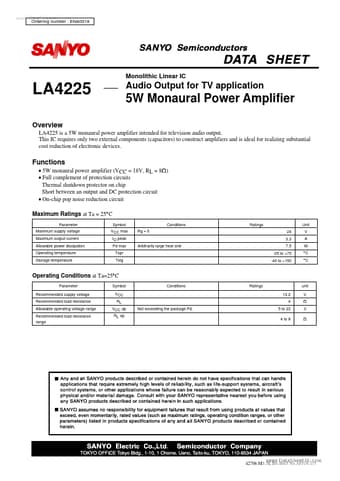

Preview of LA4225 PDF
LA4225 Datasheet Preview Page 2 LA4225 Datasheet Preview Page 3

Datasheet Details

Part number:

LA4225

Manufacturer:

Sanyo Electric

File Size:

168.02 KB

Description:

5w monaural power amplifier.
