2SA1592 - PNP/NPN Epitaxial Planar Silicon Transistors

Product Overview

Sanyo Semicon Device

Part number	2SA1592
Manufacturer	Sanyo Semicon Device
File Size	43.59 KB
Description	PNP/NPN Epitaxial Planar Silicon Transistors
Datasheet	2SA1592 Datasheet

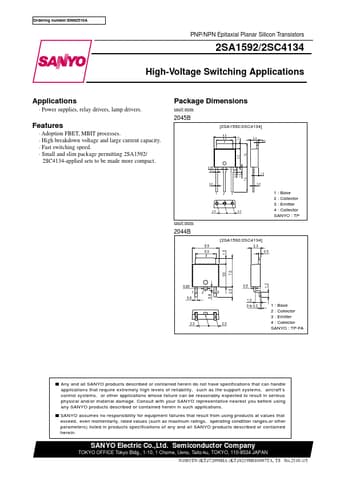

Additional preview pages of the 2SA1592 datasheet.

Adoption FBET, MBIT processes.
High breakdown voltage and large current capacity.
Fast switching speed.
Small and slim package permitting 2SA1592/ 2SC4134-applied sets to be made more compact. Package Dimensions unit:mm 2045B [2SA1592/2SC4134] 6.5 5.0 2.3 4 0.5 5.5 1.5 7.0 unit:mm 2044B 0.85 0.7 0.6 12 3 2.3 2.3 0.8 1.6 7.5 1.2 0.5 1 : Base 2 : Collector 3 : Emitter 4 : Collector SANYO : TP [2SA1592/2SC4134] 6.5 2.3 5.0 0.5 4 0.8 5.5 1.5 2.5 7.0 1.2 0.85 1 0.6 2.
