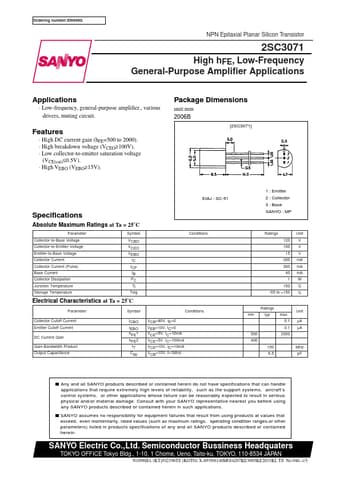

2SC3071 Datasheet, Transistor, Sanyo Semicon Device

2SC3071 Features

• Transistor
• High DC current gain (hFE=500 to 2000).
• High breakdown voltage (VCEO≥100V).
• Low collector-to-emitter saturation voltage (VCE(sat)≤0.5V).
• High VEB

PDF File Details

Part number:

2SC3071

Manufacturer:

Sanyo Semicon Device

File Size:

82.69kb

Download:

📄 Datasheet

Description:

Npn epitaxial planar silicon transistor.

2SC3071 Application

• Applications Applications
• Low-frequency, general-purpose amplifier., various drivers, muting circuit. Features
• High DC current
