2SD1815 - PNP/NPN Epitaxial Planar Silicon Transistors

2SD1815 Description

Ordering number:EN2539B PNP/NPN Epitaxial Planar Silicon Transistors 2SB1215/2SD1815 High-Current Switching Applications Applications * Relay dr.

2SD1815 Features

* Low collector-to-emitter saturation voltage.
* Excllent linearity of hFE.
* Small-sized package permitting 2SB1215/2SD1815- applied sets to be made small and slim.
* High fT.
* Fast switching time. Package Dimensions unit:mm 2045B [2SB1215/2SD1815] unit:mm 2044B [2SB1215/2SD

2SD1815 Applications

* Applications

📥 Download Datasheet

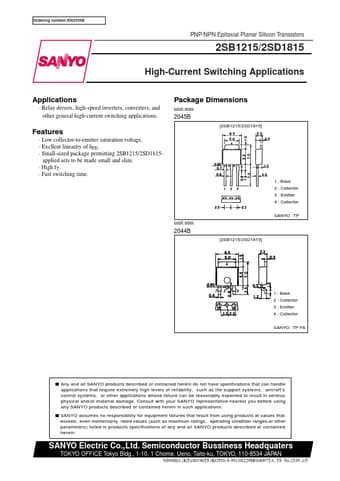

Preview of 2SD1815 PDF
