2SD2049 NPN Triple Diffused Planar Silicon Darlington Transistor

2SD2049 Description

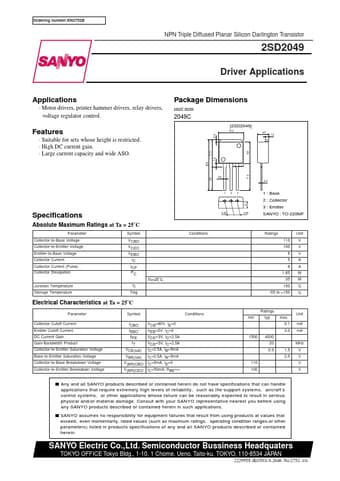

Ordering number:EN2752B NPN Triple Diffused Planar Silicon Darlington Transistor 2SD2049 Driver Applications Applications * Motor drivers, print.

2SD2049 Features

* Suitable for sets whose height is restricted.
* High DC current gain.
* Large current capacity and wide ASO. 20.9 11.5 Package Dimensions unit:mm 2049C [2SD2049] 10.2 1.2 1.6 0.9 4.5 1.3 11.0 8.8 9.4 0.8 0.4 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Colle

2SD2049 Applications

* Applications
