2SD2047 Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

2SD2047

Manufacturer:

INCHANGE

File Size:

199.25kb

Download:

📄 Datasheet

Description:

Npn transistor.

  • High Breakdown Voltage- : VCBO= 1500V (Min)
  • High Speed Switching
  • Minimum Lot-to-Lot variations for robust

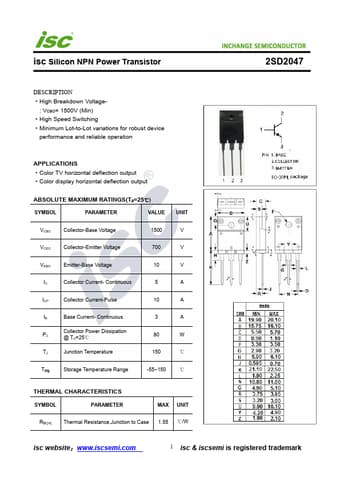

  • Datasheet Preview: 2SD2047 📥 Download PDF (199.25kb)
    Page 2 of 2SD2047

    2SD2047 Application

    • Applications
    • Color TV horizontal deflection output
    • Color display horizontal deflection output ABSOLUTE MAXIMUM RATINGS(Ta=25℃) S
