2SD2045 Datasheet - Sanken electric

2SD2045 Silicon NPN Transistor

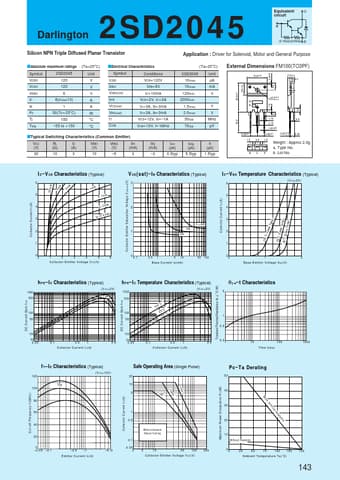

Darlington sAbsolute maximum ratings Symbol VCBO VCEO VEBO IC IB PC Tj Tstg 2SD2045 120 120 6 6(Pulse10) 1 50(Tc=25°C) 150 55 to +150 2SD2045 sElectrical Characteristics Symbol ICBO IEBO V(BR)CEO hFE VCE(sat) VBE(sat) fT COB Conditions VCB=120V VEB=6V IC=10mA VCE=2V, IC=3A IC=3A, IB=3mA IC=3A, IB=3mA VCE=12V, IE= 1A VCB=10V, f=1MHz 2SD2045 10max 10max 120min 2000min 1.5max 2.0max 50typ 70typ V V 16.2 Equivalent circuit B C (2.5k Ω)(200 Ω) E Silicon NPN Triple Diffused Plana.

2SD2045_Sankenelectric.pdf

Preview of 2SD2045 PDF

Datasheet Details

Part number:

2SD2045

Manufacturer:

Sanken ↗ electric

File Size:

26.15 KB

Description:

Silicon npn transistor.
