2SD2650 NPN Triple Diffused Planar Silicon Transistor

📥 Download Datasheet  Datasheet Preview Page 1

Description

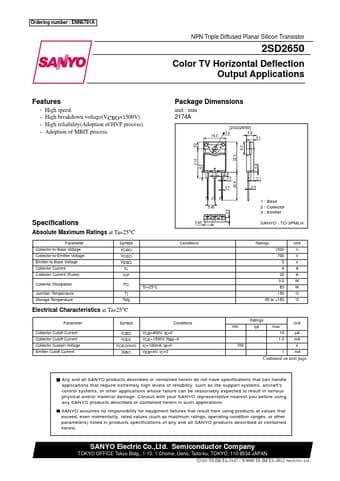

Ordering number : ENN6781A 2SD2650 NPN Triple Diffused Planar Silicon Transistor 2SD2650 Color TV Horizontal Deflection Output Applications .

📥 Download Datasheet

Preview of 2SD2650 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
2SD2650
Manufacturer
Sanyo Semicon Device
File Size
29.71 KB
Datasheet
2SD2650_SanyoSemiconDevice.pdf
Description
NPN Triple Diffused Planar Silicon Transistor

Features

* Package Dimensions unit : mm 2174A [2SD2650] 16.0 5.0 3.4 5.6 3.1 8.0 22.0 High speed. High breakdown voltage(VCBO=1500V). High reliability(Adoption of HVP process). Adoption of MBIT process. 21.0 4.0 2.8 2.0 20.4 0.7 0.9 1 2 5.45 3 3.5 0.8 2.1 1 : Ba
