2SD2653

The 2SD2653 is Transistors designed by Rohm.

Product Overview

Rohm

Part number	2SD2653
Manufacturer	ROHM
File Size	89.46 KB
Description	Transistors
Datasheet	2SD2653_Rohm.pdf
Additional preview pages of the 2SD2653 datasheet.

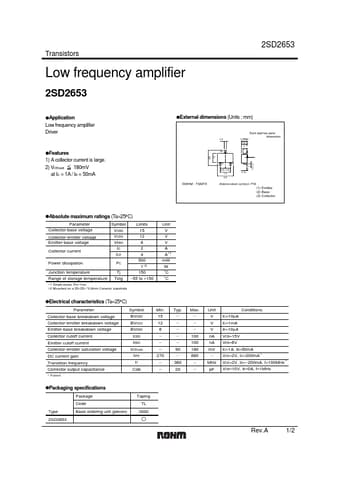

1) A collector current is large. 2) VCE(sat) ≦ 180mV at IC = 1A / IB = 50mA ROHM : TSMT3 (3) 2.8 1.6 0~0.1 0.3~0.6 (1) (2) 0.95 0.95 1.9 0.16 2.9 Abbreviated symbol: FW (1) Emitter (2) Base (3) Collector zAbsolute maximum ratings (Ta=25°C) Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Power dissipation Junction temperature Range of storage temperature Symbol VCBO VCEO VEBO IC ICP PC Tj Tstg Limits 15 12 6 2 4 500 1∗2 150.
