2SD2603 - SILICON NPN TRANSISTOR

Datasheet Summary

Description

TO-220F NPN 。Silicon NPN transistor in a TO-220F Plastic Package.

Features

,。 High VCEO, low VCE(sat). /.

FOSHAN BLUE ROCKET

📥 Download Datasheet

Datasheet Details

Part number	2SD2603
Manufacturer	FOSHAN BLUE ROCKET
File Size	758.55 KB
Description	SILICON NPN TRANSISTOR
Datasheet	2SD2603 Datasheet
Additional preview pages of the 2SD2603 datasheet.

📁 Similar Datasheet

2SD2600 - NPN Triple Diffused Planar Silicon Darlington Transistor (Sanyo Semicon Device)
2SD2604 - Silicon NPN Transistor (Toshiba Semiconductor)
2SD2606 - SILICON NPN DIFFUSED TYPE TRANSISTOR (Panasonic)
2SD2607 - Power Transistor (Rohm)
2SD261 - Transistors (ETC)
2SD2611 - Power Transistor (Rohm)
2SD2615 - Power Transistor (Rohm)
2SD2620J - Silicon NPN Transistor (Panasonic Semiconductor)
2SD2621 - Silicon NPN epitaxial planar type Transistor (Panasonic Semiconductor)
2SD2623 - Silicon NPN epitaxial planar type Transistor (Panasonic Semiconductor)

Other Datasheets by FOSHAN BLUE ROCKET

Full PDF Text Transcription

Click to expand full text

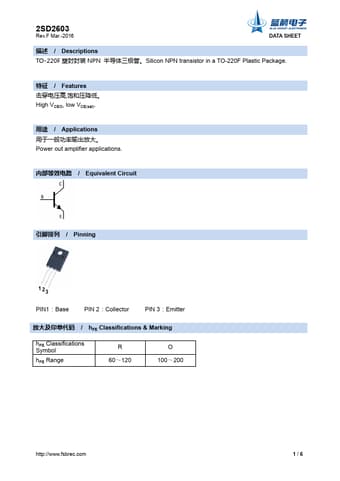

2SD2603 Rev.F Mar.-2016 DATA SHEET / Descriptions TO-220F NPN 。Silicon NPN transistor in a TO-220F Plastic Package. / Features ,。 High VCEO, low VCE(sat). / Applications 。 Power out amplifier applications. / Equivalent Circuit / Pinning 1 23 PIN1：Base PIN 2：Collector PIN 3：Emitter / hFE Classifications & Marking hFE Classifications Symbol hFE Range R 60～120 O 100～200 http://www.fsbrec.com 1/6 2SD2603 Rev.F Mar.-2016 / Absolute Maximum Ratings(Ta=25℃) Parameter Collector to Base Voltage Collector to Emitter Voltage Emitter to Base Voltage Collector Current - Continuous Collector Power Dissipation Collector Power Dissipation Junction Temperature Storage Temperature Range Symbol VCBO VCEO VEBO IC PC PC(TC=25℃) Tj Tstg DATA SHEET Rating 100 100 5.

Published: Mar 24, 2015 |
