2SD2606 - SILICON NPN DIFFUSED TYPE TRANSISTOR

Datasheet Summary

Features

  • q Extremely satisfactory linearity of the forward current transfer ratio hFE q High collector to base voltage VCBO q Wide area of safe operation (ASO) q TO-220(c) type package enabling direct soldering of the radiating fin to the printed circuit board, etc. of small electronic equipment. s Absolute Maximum Ratings (TC=25˚C) Parameter Symbol Ratings Collector to base voltage Collector to emitter voltage Emitter to base voltage Peak collector current Collector current Collector power TC=.

📥 Download Datasheet

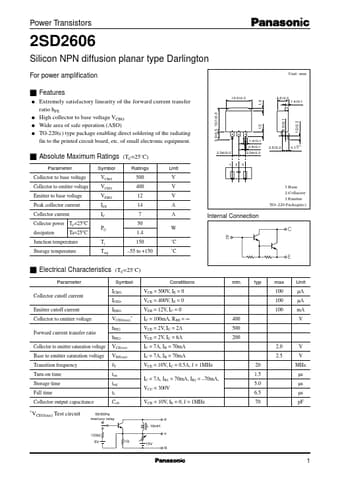

Datasheet preview – 2SD2606

Datasheet Details

Part number 2SD2606
Manufacturer Panasonic
File Size 50.04 KB
Description SILICON NPN DIFFUSED TYPE TRANSISTOR
Datasheet download datasheet 2SD2606 Datasheet
Additional preview pages of the 2SD2606 datasheet.

📁 Similar Datasheet

  • 2SD2600 - NPN Triple Diffused Planar Silicon Darlington Transistor (Sanyo Semicon Device)
  • 2SD2603 - SILICON NPN TRANSISTOR (FOSHAN BLUE ROCKET)
  • 2SD2604 - Silicon NPN Transistor (Toshiba Semiconductor)
  • 2SD2607 - Power Transistor (Rohm)
  • 2SD261 - Transistors (ETC)
  • 2SD2611 - Power Transistor (Rohm)
  • 2SD2615 - Power Transistor (Rohm)
  • 2SD2620J - Silicon NPN Transistor (Panasonic Semiconductor)
  • 2SD2621 - Silicon NPN epitaxial planar type Transistor (Panasonic Semiconductor)
  • 2SD2623 - Silicon NPN epitaxial planar type Transistor (Panasonic Semiconductor)
Other Datasheets by Panasonic

Full PDF Text Transcription

Click to expand full text
Power Transistors 2SD2606 Silicon NPN diffusion planar type Darlington For power amplification Unit: mm s Features q Extremely satisfactory linearity of the forward current transfer ratio hFE q High collector to base voltage VCBO q Wide area of safe operation (ASO) q TO-220(c) type package enabling direct soldering of the radiating fin to the printed circuit board, etc. of small electronic equipment. s Absolute Maximum Ratings (TC=25˚C) Parameter Symbol Ratings Collector to base voltage Collector to emitter voltage Emitter to base voltage Peak collector current Collector current Collector power TC=25°C dissipation Ta=25°C VCBO VCEO VEBO ICP IC PC 500 400 12 14 7 50 1.4 Junction temperature Storage temperature Tj 150 Tstg –55 to +150 Unit V V V A A W ˚C ˚C 10.5±0.3 2.
