2SD2620J - Silicon NPN Transistor

Datasheet Summary

Features

  • High forward current transfer ratio hFE.
  • Low collector to emitter saturation voltage VCE(sat).
  • High emitter to base voltage VBEO.
  • SS-mini type package 0.12+0.03.
  • 0.01 3 1.60±0.05 0.85+0.05.
  • 0.03 (0.375) 1 0.27±0.02 2 (0.80) (0.50)(0.50) 0 to 0.02 I Absolute Maximum Ratings Ta = 25°C Parameter Collector to base voltage Collector to emitter voltage Emitter to base voltage Peak collector current Collector current Collector power dissipatio.

📥 Download Datasheet

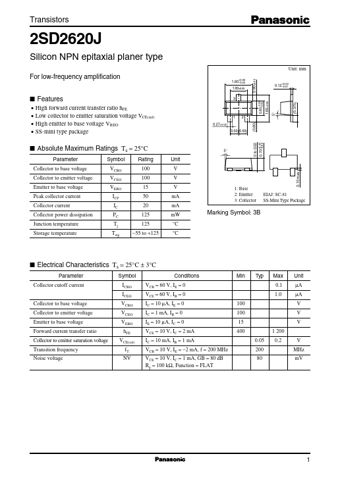

Datasheet preview – 2SD2620J

Datasheet Details

Part number 2SD2620J
Manufacturer Panasonic Semiconductor
File Size 43.56 KB
Description Silicon NPN Transistor
Datasheet download datasheet 2SD2620J Datasheet
Additional preview pages of the 2SD2620J datasheet.

📁 Similar Datasheet

  • 2SD2624 - NPN Transistor (Sanyo Semicon Device)
  • 2SD2625V9 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SD2625X9 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SD2625Z9 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SD2627 - NPN Triple Diffused Planar Silicon Transistor (Sanyo Semicon Device)
  • 2SD2627LS - NPN Triple Diffused Planar Silicon Transistor (Sanyo Semicon Device)
  • 2SD2600 - NPN Triple Diffused Planar Silicon Darlington Transistor (Sanyo Semicon Device)
  • 2SD2603 - SILICON NPN TRANSISTOR (FOSHAN BLUE ROCKET)
  • 2SD2604 - Silicon NPN Transistor (Toshiba Semiconductor)
  • 2SD2606 - SILICON NPN DIFFUSED TYPE TRANSISTOR (Panasonic)
Other Datasheets by Panasonic Semiconductor
  • 2SD2621 - Silicon NPN epitaxial planar type Transistor
  • 2SD2623 - Silicon NPN epitaxial planar type Transistor
  • 2SD2693 - Power Transistors
  • 2SD2693A - Silicon NPN triple diffusion planar type Transistor
  • 2SD2000 - Silicon NPN Transistor
  • 2SD2018 - Silicon NPN Transistor
  • 2SD2029 - Silicon NPN Transistor
  • 2SD2051 - Silicon NPN Transistor

Full PDF Text Transcription

Click to expand full text
Transistors 2SD2620J Silicon NPN epitaxial planer type Unit: mm 1.60+0.05 –0.03 1.00±0.05 0.80±0.05 For low-frequency amplification I Features • High forward current transfer ratio hFE • Low collector to emitter saturation voltage VCE(sat) • High emitter to base voltage VBEO • SS-mini type package 0.12+0.03 –0.01 3 1.60±0.05 0.85+0.05 –0.03 (0.375) 1 0.27±0.02 2 (0.80) (0.50)(0.50) 0 to 0.02 I Absolute Maximum Ratings Ta = 25°C Parameter Collector to base voltage Collector to emitter voltage Emitter to base voltage Peak collector current Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO ICP IC PC Tj Tstg Rating 100 100 15 50 20 125 125 −55 to +125 Unit V V V mA mA mW °C °C 5° 0.70+0.05 –0.
