2SD2627 - NPN Triple Diffused Planar Silicon Transistor

Datasheet Summary

Features

  • Package Dimensions unit : mm 2079C [2SD2627] 10.0 3.5 7.2 High speed. High breakdown voltage(VCBO=1500V). High reliability(Adoption of HVP process). Adoption of MBIT process. On-chip damper diode. 4.5 2.8 3.2 16.1 16.0 0.9 1.2 14.0 3.6 0.75 0.7 0.6 1 2 3 2.4 Specifications Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current.

📥 Download Datasheet

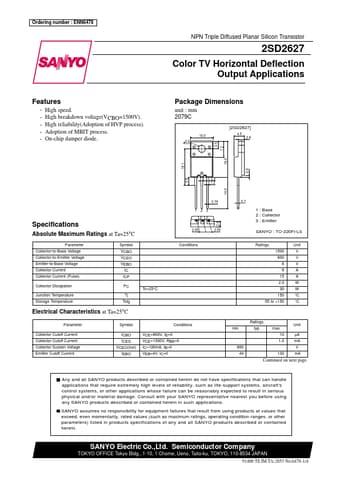

Datasheet preview – 2SD2627

Datasheet Details

Part number 2SD2627
Manufacturer Sanyo Semicon Device
File Size 28.06 KB
Description NPN Triple Diffused Planar Silicon Transistor
Datasheet download datasheet 2SD2627 Datasheet
Additional preview pages of the 2SD2627 datasheet.

📁 Similar Datasheet

  • 2SD2620J - Silicon NPN Transistor (Panasonic Semiconductor)
  • 2SD2621 - Silicon NPN epitaxial planar type Transistor (Panasonic Semiconductor)
  • 2SD2623 - Silicon NPN epitaxial planar type Transistor (Panasonic Semiconductor)
  • 2SD2625V9 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SD2625X9 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SD2625Z9 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SD2603 - SILICON NPN TRANSISTOR (FOSHAN BLUE ROCKET)
  • 2SD2604 - Silicon NPN Transistor (Toshiba Semiconductor)
  • 2SD2606 - SILICON NPN DIFFUSED TYPE TRANSISTOR (Panasonic)
  • 2SD2607 - Power Transistor (Rohm)
Other Datasheets by Sanyo Semicon Device
  • 2SD2627LS - NPN Triple Diffused Planar Silicon Transistor
  • 2SD2624 - NPN Transistor
  • 2SD2600 - NPN Triple Diffused Planar Silicon Darlington Transistor
  • 2SD2634 - NPN Triple Diffused Planar Silicon Transistor
  • 2SD2635 - NPN Transistor
  • 2SD2639 - NPN Triple Diffused Planar Silicon Transistor
  • 2SD2645 - NPN Transistor
  • 2SD2646 - NPN Triple Diffused Planar Silicon Transistor

Full PDF Text Transcription

Click to expand full text
Ordering number : ENN6478 2SD2627 NPN Triple Diffused Planar Silicon Transistor 2SD2627 Color TV Horizontal Deflection Output Applications Features • • • • • Package Dimensions unit : mm 2079C [2SD2627] 10.0 3.5 7.2 High speed. High breakdown voltage(VCBO=1500V). High reliability(Adoption of HVP process). Adoption of MBIT process. On-chip damper diode. 4.5 2.8 3.2 16.1 16.0 0.9 1.2 14.0 3.6 0.75 0.7 0.6 1 2 3 2.4 Specifications Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC ICP PC Tj Tstg Tc=25°C 2.
