2SJ381 - P-Channel MOSFET

Features

  • Low ON-resistance.
  • Ultrahigh-speed switching.
  • 2.5V drive. P-Channel Silicon MOSFET 2SJ381 Ultrahigh-Speed Switching.

📥 Download Datasheet

📁 Similar Datasheet

  • 2SJ380 - P-Channel MOSFET (Toshiba Semiconductor)
  • 2SJ380 - P-Channel MOSFET Transistor (Inchange Semiconductor)
  • 2SJ386 - P-Channel MOSFET (Hitachi Semiconductor)
  • 2SJ387 - P-Channel MOSFET (Hitachi Semiconductor)
  • 2SJ387L - P-Channel MOSFET (Hitachi Semiconductor)
  • 2SJ387S - P-Channel MOSFET (Hitachi Semiconductor)
  • 2SJ389S - P-Channel MOSFET (INCHANGE)
  • 2SJ302 - P-Channel MOSFET (NEC)
  • 2SJ302-Z - SWITCHING P-CHANNEL POWER MOSFET (NEC)
  • 2SJ302-ZJ - P-Channel MOSFET (Kexin)
Other Datasheets by Sanyo Semicon Device

Full PDF Text Transcription

Click to expand full text

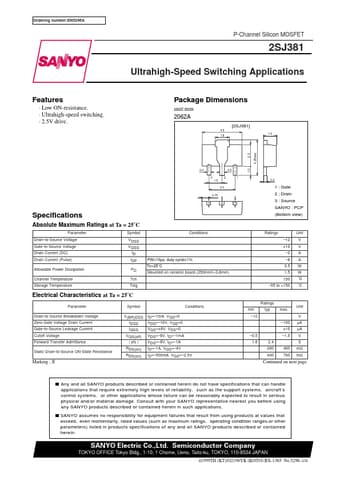

Ordering number:EN5296A Features · Low ON-resistance. · Ultrahigh-speed switching. · 2.5V drive. P-Channel Silicon MOSFET 2SJ381 Ultrahigh-Speed Switching Applications Package Dimensions unit:mm 2062A [2SJ381] 4.5 1.6 1.5 1.0 2.5 4.25max 0.4 0.5 32 1.5 1 3.0 0.75 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Drain-to-Source Voltage Gate-to-Source Voltage Drain Current (DC) Drain Current (Pulse) Symbol VDSS VGSS ID IDP Allowable Power Dissipation PD Channel Temperature Storage Temperature Tch Tstg Conditions PW≤10µs, duty cycle≤1% Tc=25˚C Mounted on ceramic board (250mm2× 0.
