C3143 2SC3143

C3143 Description

Ordering number:ENN1057C PNP/NPN Epitaxial Planar Silicon Transistors 2SA1257/2SC3143 High-Voltage Switching, AF Power Amp, 100W Output Predriver App.

C3143 Features

* Very small-sized package permitting the 2SA1257/ 2SC3143-applied sets to be made small and slim.
* High breakdown voltage (VCEO≥160V).
* Small output capacitance. Package Dimensions unit:mm 2018B [2SA1257/2SC3143] 0.4 3 0.16 0 to 0.1 1.5 0.5 2.5 0.5 1 0.95 0.95 2 1.9 2.9 0.8 1.1

📥 Download Datasheet

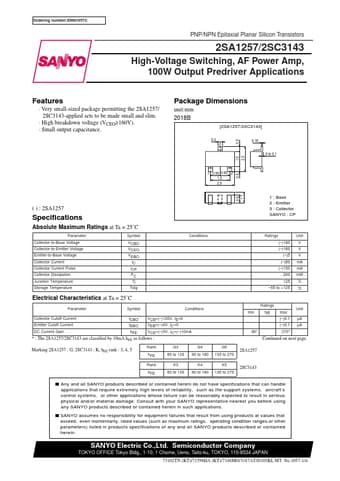

Preview of C3143 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C3143
Manufacturer
Sanyo Semicon Device
File Size
38.63 KB
Datasheet
C3143-SanyoSemiconDevice.pdf
Description
2SC3143
