C3150 Datasheet - Sanyo Semicon Device

C3150, 2SC3150

Ordering number:EN1069C NPN Triple Diffused Planar Silicon Transistor 2SC3150 800V/3A Switching Regulator Applications .

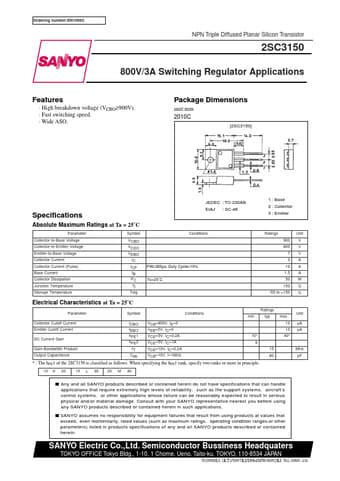

datasheet Preview Page 1 from Datasheet4u.com

C3150_SanyoSemiconDevice.pdf

C3150 Datasheet Preview — Preview of C3150 PDF

Datasheet Details

Part number:

C3150

Manufacturer:

Sanyo Semicon Device

File Size:

100.81 KB

Description:

2SC3150

Features

* High breakdown voltage (VCBO≥900V).
* Fast switching speed.
* Wide ASO. Package Dimensions unit:mm 2010C [2SC3150] Specifications JEDEC : TO-220AB EIAJ : SC-46 1 : Base 2 : Collector 3 : Emitter Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-t
