C3151 - 2SC3151

C3151 Description

Ordering number:EN1070C NPN Triple Diffused Planar Silicon Transistor 2SC3151 800V/1.5A Switching Regulator Applications .

C3151 Features

* High breakdown voltage (VCBO≥900V).
* Fast switching speed.
* Wide ASO. Package Dimensions unit:mm 2022A [2SC3151] Specifications 1 : Base 2 : Collector 3 : Emitter SANYO : TO-3PB Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltag

📥 Download Datasheet

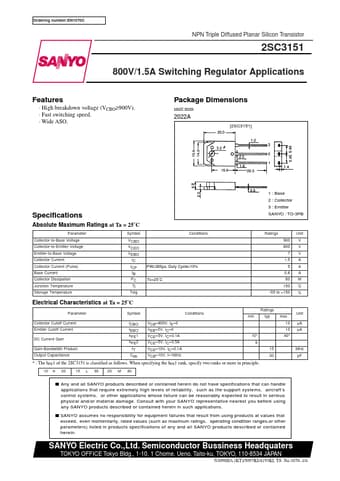

Preview of C3151 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C3151
Manufacturer
Sanyo
File Size
95.40 KB
Datasheet
C3151-Sanyo.pdf
Description
2SC3151
