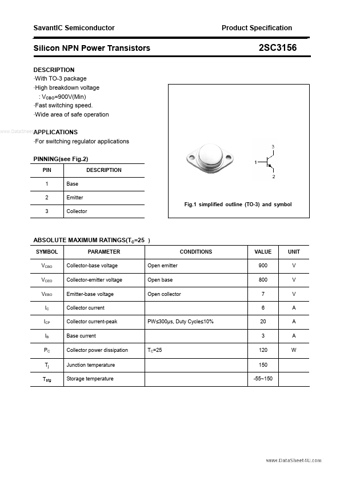

With TO-3 package High breakdown voltage : VCBO=900V(Min) Fast switching speed. Wide area of safe operation www.DataSheet4AUP.cPomLICATIONS For switching regulator applications PINNING(see Fig.2) PIN DESCRIPTION 1 Base 2 Emitter 3 Collector Product Specification 2SC3156 Fig.1 simplified outline (TO-3) and symbol ABSOLUTE MAXIMUM RATINGS(TC=25 ) SYMBOL PARAMETER CONDITIONS VCBO Collector-base voltage Open emitter VCEO Collector-emitter voltage Open base VEBO
