C3157 Datasheet, 2sc3157, SavantIC

PDF File Details

Part number:

C3157

Manufacturer:

SavantIC

File Size:

130.08kb

Download:

📄 Datasheet

Description:

2sc3157.

  • With TO-220 package
  • High switching speed
  • Low collector saturation voltage
  • Complement to type 2SA1

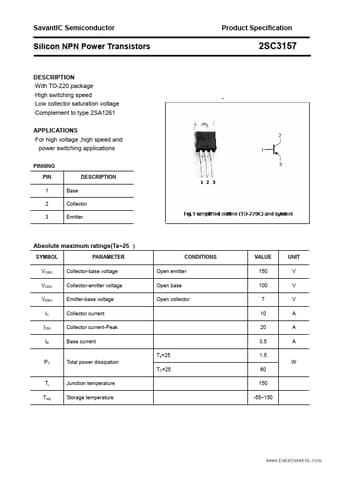

  • Datasheet Preview: C3157 📥 Download PDF (130.08kb)
    Page 2 of C3157 Page 3 of C3157

    C3157 Application

    • Applications
    • For high voltage ,high speed and power switching applications PINNING PIN 1 2 3 DESCRIPTION Base Collector Emitter Product
