C3150 Datasheet, 2sc3150 equivalent, SavantIC

PDF File Details

Part number:

C3150

Manufacturer:

SavantIC

File Size:

157.38kb

Download:

📄 Datasheet

Description:

2sc3150.

  • With TO-220C package
  • High breakdown voltage : VCBO=900V(Min)
  • Fast switching speed.
  • Wide ASO (Safe

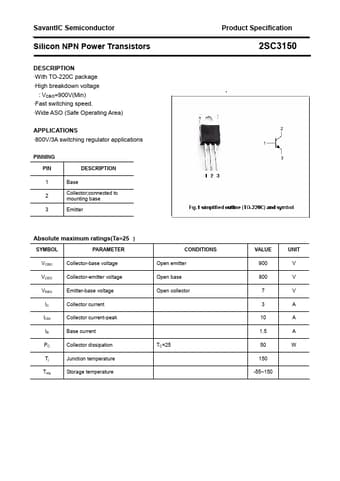

  • Datasheet Preview: C3150 📥 Download PDF (157.38kb)
    Page 2 of C3150 Page 3 of C3150

    C3150 Application

    • Applications
    • 800V/3A switching regulator applications PINNING PIN 1 2 3 DESCRIPTION Base Collector;connected to mounting base Emitter Pr
