C5043

2SC5043

C5043 Features

* High speed (tf=100ns typ).

* High reliability (HVP process).

* High breakdown voltage (VCBO=1600V).

* Adoption of MBIT process.

* On-chip damper diode. Package Dimensions unit:mm 2039D [2SC5043] 3.4 16.0 5.0 8.0 5.6 3.1 21.0 22.0 4.0 2.8 2.0 20.4 1.0 2.0 0.6 1 2 3 3.5

C5043 Datasheet (104.53 KB)

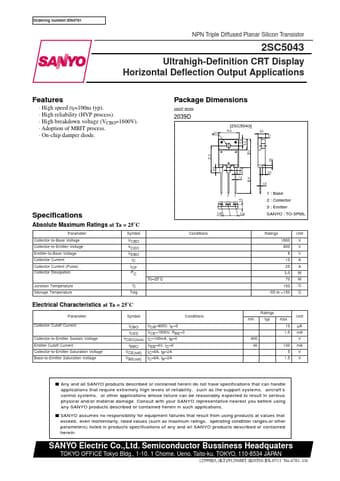

Preview of C5043 PDF

Datasheet Details

Part number:

C5043

Manufacturer:

Sanyo Semicon Device

File Size:

104.53 KB

Description:

2sc5043.
Ordering number:EN4781 NPN Triple Diffused Planar Silicon Transistor 2SC5043 Ultrahigh-Definition CRT Display Horizontal Deflection Output Applicati.
