FSS134 - DC/DC Converter Applications

Datasheet Summary

Features

  • Low ON resistance.
  • Ultrahigh-speed switching.
  • 4V drive. Package Dimensions unit:mm 2116 [FSS134] 8 5 0.3 4.4 6.0 5.0 1.5 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Drain-to-Source Voltage Gate-to-Source Voltage Drain Current (DC) Drain Current (pulse) Allowable Power Dissipation Channel Temperature Storage Temperature Symbol VDSS VGSS ID IDP PD Tch Tstg 0.595 1.27 0.43 0.1 1.8max 1 4 0.2 1 : Source 2 : Source 3 : Source 4 : Gate 5 : Drain 6 : Dra.

📥 Download Datasheet

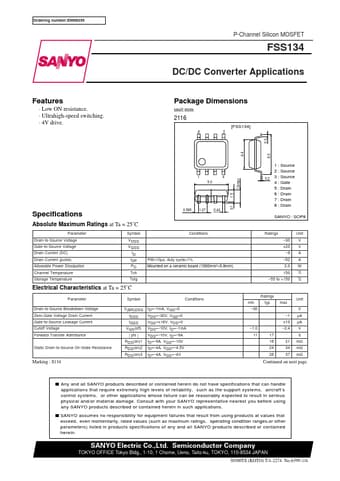

Datasheet preview – FSS134

Datasheet Details

Part number FSS134
Manufacturer Sanyo Semicon Device
File Size 42.03 KB
Description DC/DC Converter Applications
Datasheet download datasheet FSS134 Datasheet
