LA5771

Separately-Excited Step-Down Switching Regulator

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Rochester Electronics LLC LA5771-HK-E IC REG BUCK DC-DC TO-220 DigiKey 0 420 units
$0.71

LA5771 Datasheet (99.27 KB)

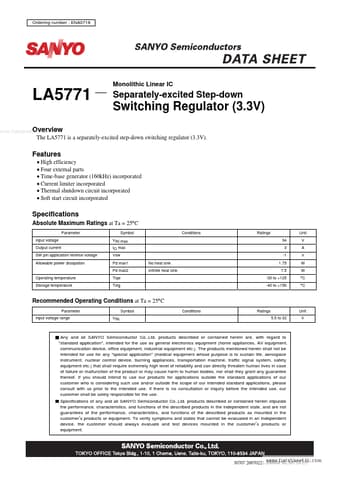

Preview of LA5771 PDF Datasheet

Datasheet Details

Part number:

LA5771

Manufacturer:

Sanyo Semicon Device

File Size:

99.27 KB

Description:

Separately-excited step-down switching regulator

LA5771 Features

* High efficiency

* Four external parts

* Time-base generator (160kHz) incorporated

* Current limiter incorporated

* Thermal shutdown circuit incorporated

* Soft start circuit incorporated Specifications Absolute Maximum Ratings at Ta = 25°C Parameter

LA5771 General Description

of Functional Settings 1.Start delay function The SS pin has the internally-connected 22µA (typ) constant-current supply. When the voltage of SS pin exceeds the threshold voltage, the regulator starts operation. As the threshold is 0.62V(typ), the start delay time can be calculated as follows: ex. F.
