LA5774 Separately-Excited Step-Down Switching Regulator

of Functional Settings 1. Calculation equation to set the output voltage This IC controls the switching output so that the VOS pin voltage becomes 1.26V (typ). The equation to set the output voltage is as follows: R2 VO = 1+ × 1.26V(typ) R1 The VOS pin has the inrush current of 1µA (typ). Therefore.

Ordering number : ENA0742 Monolithic Linear IC LA5774 www.DataSheet4U.com Separately-excited Step-down Switching Regulator (Variable Type) Overview The LA5774 is a Separately-excited step-down switching regulator (variable type). Functions Low-ESR capacitor with increased reliability applicable as the output smoothing capacitor. High efficiency. Four external parts. Time-base generator (160kHz) incorporated. Current limiter incorporated.

LA5774_SanyoSemiconDevice.pdf

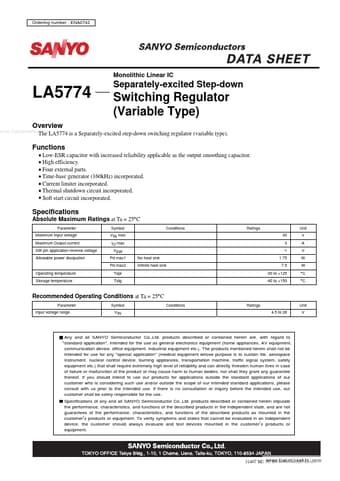

LA5774 Datasheet Preview — Preview of LA5774 PDF

Datasheet Details

Part number:

LA5774

Manufacturer:

Sanyo Semicon Device

File Size:

101.53 KB

Description:

Separately-excited step-down switching regulator.
