LB11650H - PWM Input Forward/Reverse Motor Driver

Product Overview

Sanyo Semicon Device

📥 Download Datasheet

LB11650H PWM Input Forward/Reverse Motor Driver by Sanyo Semicon Device - Datasheet Preview — Datasheet preview – LB11650H

Datasheet Details

Part number	LB11650H
Manufacturer	Sanyo Semicon Device
File Size	75.60 KB
Description	PWM Input Forward/Reverse Motor Driver
Datasheet	LB11650H Datasheet

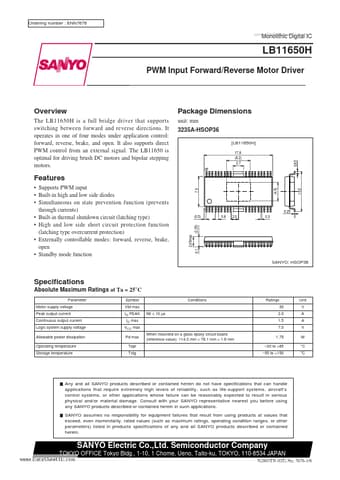

Additional preview pages of the LB11650H datasheet.

Product details

Features

Supports PWM input.
Built-in high and low side diodes.
Simultaneous on state prevention function (prevents through currents).
Built-in thermal shutdown circuit (latching type).
High and low side short circuit protection function (latching type overcurrent protection).
Externally controllable modes: forward, reverse, brake, open.
Standby mode function (4.9) 10.5 0.25 0.8 2.0 0.3 Unit V A A V W °C °C 30 tW ≤ 10 µs 2.0 1.5 7.0 When mou.
