LB11660FV - Single-Phase Full-Wave Fan Motor Driver

Product Overview

Sanyo Semicon Device

Part number	LB11660FV
Manufacturer	Sanyo Semicon Device
File Size	148.54 KB
Description	Single-Phase Full-Wave Fan Motor Driver
Datasheet	LB11660FV Datasheet

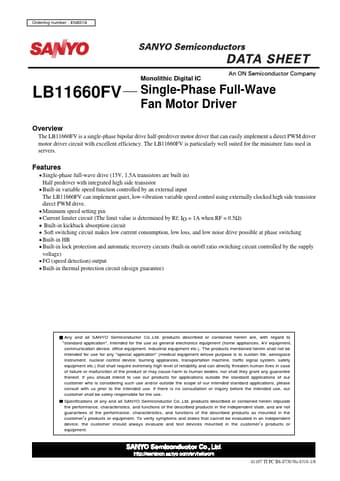

Additional preview pages of the LB11660FV datasheet.

Single-phase full-wave drive (15V, 1.5A transistors are built in) Half predriver with integrated high side transistor.
Built-in variable speed function controlled by an external input The LB11660FV can implement quiet, low-vibration variable speed control using externally clocked high side transistor direct PWM drive.
Minimum speed setting pin.
Current limiter circuit (The limit value is determined by Rf; IO = 1A when RF = 0.5Ω).
Built-in kickback a.
