LB11669M Datasheet - Sanyo Semicon Device

LB11669M Monolithic Linear IC For Fan Motor Two-Phase Half-Wave Driver

Ordering number : ENA1096 www.DataSheet4U.com Monolithic Digital IC LB11669M Overview For Fan Motor Two-Phase Half-Wave Driver The LB11669M is a two-phase uni-polar brushless motor driver for fan motor. Functions Two-phase half-wave drive. RD (lock detection) outputs incorporated. FG (rotation detection) outputs incorporated. Thermal shutdown circuit incorporated. Lock protection and automatic return function incorporated. Output.

LB11669M_SanyoSemiconDevice.pdf

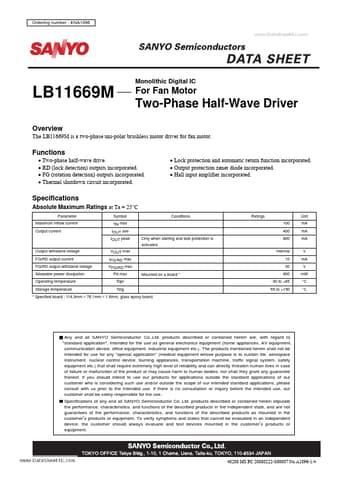

Preview of LB11669M PDF
LB11669M Datasheet Preview Page 2 LB11669M Datasheet Preview Page 3

Datasheet Details

Part number:

LB11669M

Manufacturer:

Sanyo Semicon Device

File Size:

133.86 KB

Description:

Monolithic linear ic for fan motor two-phase half-wave driver.
