LC74152B TS+Audio+Video decoder LSI

LC74152B Description

Ordering number : EN8137A CMOS IC LC74152B Overview For digital TV TS+Audio+Video decoder LSI with built-in OSD The LC74152B is TS+Audio+Video de.

LC74152B Features

* MULTI2 type descrambler, TS-Demultiplexer, video decoder, and audio decoder functions incorporated
* Video decoder converts the HDTV (MPEFG MP@HL) stream input to 480P/480i for output. Audio decoder compatible with MPEG-AAC and MPEG-BC
* OSD compatible with data broadcastin

LC74152B Applications

* outside the standard applications of our customer who is considering such use and/or outside the scope of our intended standard applications, please consult with us prior to the intended use. If there is no consultation or inquiry before the intended use, our customer shall be solely responsible for

📥 Download Datasheet

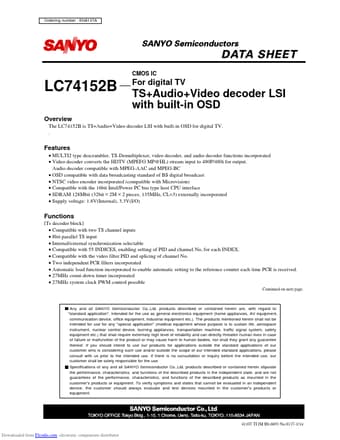

Preview of LC74152B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LC74152B
Manufacturer
Sanyo Semicon Device
File Size
148.53 KB
Datasheet
LC74152B-SanyoSemiconDevice.pdf
Description
TS+Audio+Video decoder LSI
