OS-CON20SVP150M Datasheet - Sanyo Semicon Device

OS-CON20SVP150M OS-CON SVP series

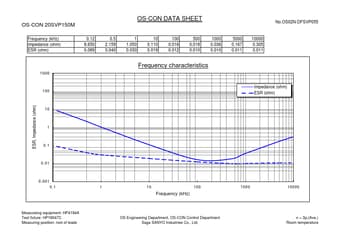

OS-CON DATA SHEET OS-CON 20SVP150M Frequency (kHz) Impedance (ohm) ESR (ohm) 0.12 8.650 0.089 0.5 2.159 0.040 1 1.050 0.030 10 0.110 0.019 100 0.016 0.012 500 0.018 0.010 1000 0.036 0.010 5000 0.167 0.011 10000 0.305 0.011 No.OS02N-DFSVP055 Frequency characteristics 1000 100 Impedance (ohm) ESR (ohm) ESR, Impedance (ohm) 10 1 0.1 0.01 0.001 0.1 1 10 100 1000 10000 Frequency (kHz) Measureing equipment: HP4194A Test fixture: HP16047C Measuring position: root of leads OS Engineering De.
