OS-CON20SVP22M SVP series

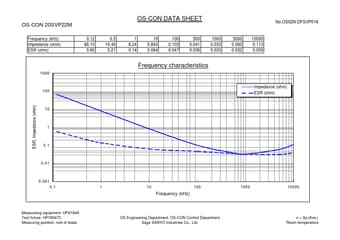

OS-CON DATA SHEET OS-CON 20SVP22M Frequency (kHz) Impedance (ohm) ESR (ohm) 0.12 68.10 0.60 0.5 16.40 0.21 1 8.24 0.14 10 0.843 0.064 100 0.103 0.047 500 0.041 0.036 1000 0.033 0.033 5000 0.060 0.032 10000 0.113 0.039 No.OS02N-DFSVP016 Frequency characteristics 1000 100 Impedance (ohm) ESR (ohm) ESR, Impedance (ohm) 10 1 0.1 0.01 0.001 0.1 1 10 100 1000 10000 Frequency (kHz) Measureing equipment: HP4194A Test fixture: HP16047C Measuring position: root of leads OS Engineering Departm.
