OS-CON20SVP10M SVP series

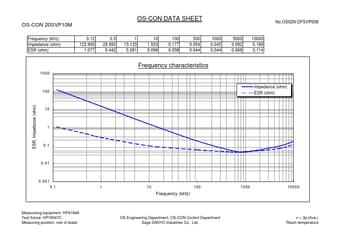

OS-CON DATA SHEET OS-CON 20SVP10M Frequency (kHz) Impedance (ohm) ESR (ohm) 0.12 123.900 1.077 0.5 29.993 0.442 1 15.133 0.281 10 1.533 0.096 100 0.177 0.058 500 0.054 0.044 1000 0.045 0.044 5000 0.092 0.068 10000 0.169 0.114 No.OS02N-DFSVP008 Frequency characteristics 1000 100 Impedance (ohm) ESR (ohm) ESR, Impedance (ohm) 10 1 0.1 0.01 0.001 0.1 1 10 100 1000 10000 Frequency (kHz) Measureing equipment: HP4194A Test fixture: HP16047C Measuring position: root of leads OS Engineering.
