OS-CON10SVP33M SVP series

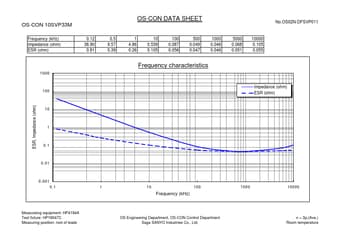

OS-CON DATA SHEET OS-CON 10SVP33M Frequency (kHz) Impedance (ohm) ESR (ohm) 0.12 38.90 0.81 0.5 9.57 0.39 1 4.86 0.26 10 0.539 0.105 100 0.087 0.056 500 0.049 0.047 1000 0.046 0.046 5000 0.068 0.051 10000 0.105 0.055 No.OS02N-DFSVP011 Frequency characteristics 1000 100 Impedance (ohm) ESR (ohm) ESR, Impedance (ohm) 10 1 0.1 0.01 0.001 0.1 1 10 100 1000 10000 Frequency (kHz) Measureing equipment: HP4194A Test fixture: HP16047C Measuring position: root of leads OS Engineering Departme.
