SB100-05H - 50V/ 10A Rectifier

Sanyo Semicon Device

📥 Download Datasheet

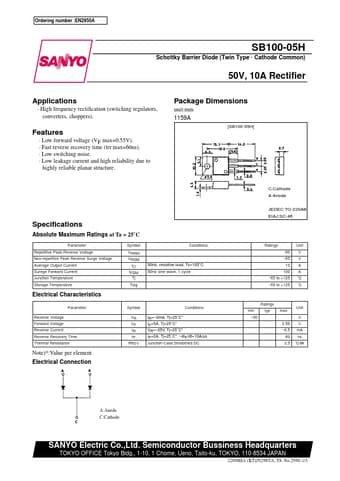

SB100-05H Datasheet Preview — Preview of SB100-05H PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SB100-05H
Manufacturer	Sanyo Semicon Device
File Size	85.67 KB
Description	50V/ 10A Rectifier
Datasheet	SB100-05H_SanyoSemiconDevice.pdf

SB100-05H Product details

Features

Low forward voltage (VF max=0.55V).
Fast reverse recovery time (trr max=60ns).
Low switching noise.
Low leakage current and high reliability due to highly reliable planar structure. C:Cathode A:Anode JEDEC:TO-220AB EIAJ:SC-46 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Repetitive Peak Reverse Voltage Non-repetitive Peak Reverse Surge Voltage Average Output Current Surege Forward Current Junction Temperature Storage Temperature Symbol VRRM VRSM IO IFSM.
