SB100-05J - 50V/ 10A Rectifier

Sanyo Semicon Device

📥 Download Datasheet

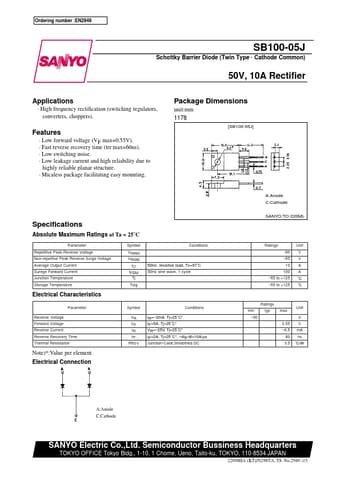

SB100-05J Datasheet Preview — Preview of SB100-05J PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SB100-05J
Manufacturer	Sanyo Semicon Device
File Size	84.06 KB
Description	50V/ 10A Rectifier
Datasheet	SB100-05J_SanyoSemiconDevice.pdf

SB100-05J Product details

Features

Low forward voltage (VF max=0.55V).
Fast reverse recovery time (trr max=60ns).
Low switching noise.
Low leakage current and high reliability due to highly reliable planar structure.
Micaless package facilitating easy mounting. A:Anode C:Cathode SANYO:TO-220ML Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Repetitive Peak Reverse Voltage Non-repetitve Peak Reverse Surge Voltage Average Output Current Surege Forward Current Junction Temperature Stora.
