SCH1333 - P-Channel Silicon MOSFET

Datasheet Summary

Features

P-Channel Silicon MOSFET General-Purpose Switching Device.

Sanyo Semicon Device

📥 Download Datasheet

Datasheet Details

Part number	SCH1333
Manufacturer	Sanyo Semicon Device
File Size	329.01 KB
Description	P-Channel Silicon MOSFET
Datasheet	SCH1333 Datasheet
Additional preview pages of the SCH1333 datasheet.

📁 Similar Datasheet

SCH1333 - P-Channel Power MOSFET (ON Semiconductor)
SCH1334 - P-Channel Power MOSFET (ON Semiconductor)
SCH1334 - P-Channel 30V MOSFET (VBsemi)
SCH1337 - Power MOSFET (ON Semiconductor)
SCH1337 - P-Channel 30V MOSFET (VBsemi)
SCH1301 - P-Channel Silicon MOSFET (Sanyo)
SCH1345 - Power MOSFET (ON Semiconductor)
SCH10000 - (SCHxxxx) STANDARD RECOVERY HIGH VOLTAGE RECTIFIER ASSEMBLY (Semtech Corporation)
SCH12500 - (SCHxxxx) STANDARD RECOVERY HIGH VOLTAGE RECTIFIER ASSEMBLY (Semtech Corporation)
SCH1406 - N-Channel Silicon MOSFET (ON Semiconductor)

Other Datasheets by Sanyo Semicon Device

SCH1330 - P-Channel Silicon MOSFET
SCH1331 - P-Channel Silicon MOSFET
SCH1332 - P-Channel Silicon MOSFET
SCH1334 - P-Channel Silicon MOSFET
SCH1335 - P-Channel Silicon MOSFET
SCH1337 - P-Channel Silicon MOSFET
SCH1302 - Ultrahigh-Speed Switching Applications
SCH1304 - P-Channel Silicon MOSFET

Full PDF Text Transcription

Click to expand full text

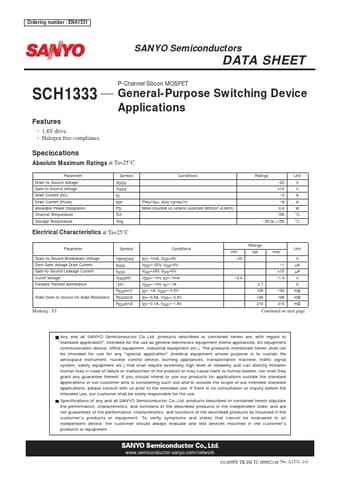

www.DataSheet.co.kr Ordering number : ENA1531 SCH1333 SANYO Semiconductors DATA SHEET SCH1333 Features • • P-Channel Silicon MOSFET General-Purpose Switching Device Applications 1.8V drive. Halogen free compliance. Speciﬁcations Absolute Maximum Ratings at Ta=25°C Parameter Drain-to-Source Voltage Gate-to-Source Voltage Drain Current (DC) Drain Current (Pulse) Allowable Power Dissipation Channel Temperature Storage Temperature Symbol VDSS VGSS ID IDP PD Tch Tstg PW≤10μs, duty cycle≤1% When mounted on ceramic substrate (900mm2×0.8mm) Conditions Ratings --20 ±10 -2 --8 0.
