STK400-020 Datasheet - Sanyo Semicon Device

-Channel AF Power Amplifier

STK400-020 Features

* Pin-compatible STK400-000 series (3-channel, single package) STK401-000 series (2-channel, single package)

* Output load impedance RL=6 Ω/3 Ω supported

* New pin assignment To simplify input/output pattern layout and minimize the effects of pattern layout on operational cha

STK400-020 General Description

of External Circuits C1, 11, 21 For input coupling capacitor. Used for current blocking. When capacitor reactance with low frequency is increased, the reactance value should be reduced in order to reduce the output noise from the signal resistance dependent 1/f noise. In response to the popping nois.

STK400-020 Datasheet (403.45 KB)

Preview of STK400-020 PDF

Datasheet Details

Part number:

STK400-020

Manufacturer:

Sanyo Semicon Device

File Size:

403.45 KB

Description:

-channel af power amplifier.

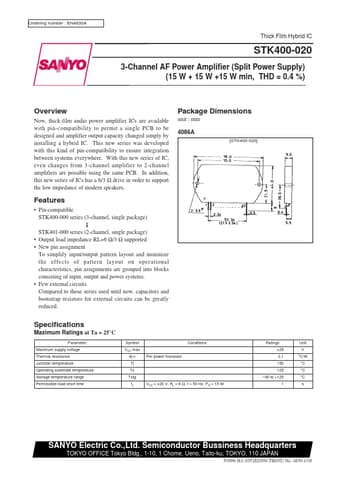

Ordering number : EN4830A Thick Film Hybrid IC STK400-020 3-Channel AF Power Amplifier (Split Power Supply) (15 W + 15 W +15 W min, THD = 0.4 %) Ov.
