STK402-050 - Two-Channel Class AB Audio Power Amplifier

Product Overview

Sanyo

Part number	STK402-050
Manufacturer	Sanyo
File Size	72.89 KB
Description	Two-Channel Class AB Audio Power Amplifier
Datasheet	STK402-050 Datasheet

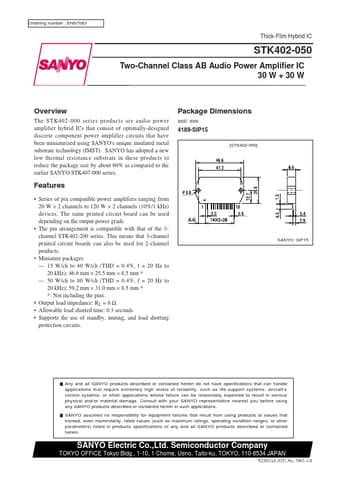

Additional preview pages of the STK402-050 datasheet.

Package Dimensions unit: mm 4189-SIP15 [STK402-050].
Series of pin compatible power amplifiers ranging from 20 W × 2 channels to 120 W × 2 channels (10%/1 kHz) devices. The same printed circuit board can be used depending on the output power grade.
The pin arrangement is compatible with that of the 3channel STK402-200 series. This means that 3-channel printed circuit boards can also be used for 2-channel products.
Miniature packages.
15 W/ch to 40 W/ch (TH.
