STK402-020 Two-Channel Class AB Audio Power Amplifier

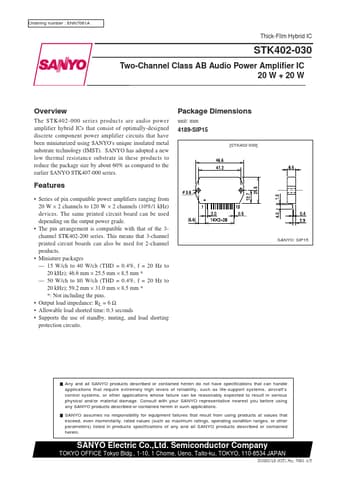

Ordering number : ENN7061A Thick-Film Hybrid IC STK402-030 Two-Channel Class AB Audio Power Amplifier IC 20 W + 20 W Overview The STK402-000 series products are audio power amplifier hybrid ICs that consist of optimally-designed discrete component power amplifier circuits that have been miniaturized using SANYO's unique insulated metal substrate technology (IMST). SANYO has adopted a new low thermal resistance substrate in these products to reduce the package size by about 60% as compared to .

STK402-020 Features

* Series of pin compatible power amplifiers ranging from 20 W × 2 channels to 120 W × 2 channels (10%/1 kHz) devices. The same printed circuit board can be used depending on the output power grade.

* The pin arrangement is compatible with that of the 3channel STK402-200 series. This
