STK402-250 - Three-Channel Class AB Audio Power Amplifier

Product Overview

Sanyo Semicon Device

Part number	STK402-250
Manufacturer	Sanyo Semicon Device
File Size	143.34 KB
Description	Three-Channel Class AB Audio Power Amplifier
Datasheet	STK402-250 Datasheet

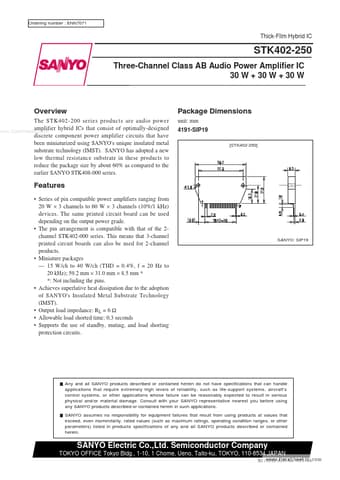

Additional preview pages of the STK402-250 datasheet.

Series of pin compatible power amplifiers ranging from 20 W × 3 channels to 60 W × 3 channels (10%/1 kHz) devices. The same printed circuit board can be used depending on the output power grade.
The pin arrangement is compatible with that of the 2channel STK402-000 series. This means that 3-channel printed circuit boards can also be used for 2-channel products.
Miniature packages.
15 W/ch to 40 W/ch (THD = 0.4%, f = 20 Hz to 20 kHz); 59.2 mm × 31.0 mm × 8.5.
