STK402-030 - Two-Channel Class AB Audio Power Amplifier

Product Overview

Sanyo

Part number	STK402-030
Manufacturer	Sanyo
File Size	62.58 KB
Description	Two-Channel Class AB Audio Power Amplifier

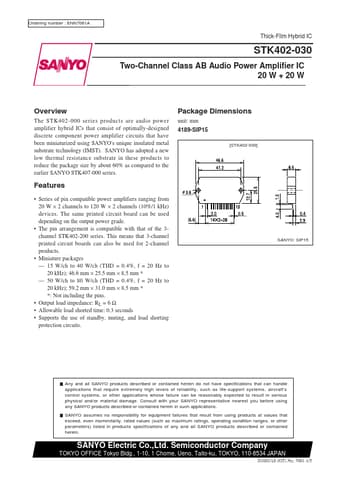

Datasheet	STK402-030 Datasheet
Additional preview pages of the STK402-030 datasheet.

Series of pin compatible power amplifiers ranging from 20 W × 2 channels to 120 W × 2 channels (10%/1 kHz) devices. The same printed circuit board can be used depending on the output power grade.
The pin arrangement is compatible with that of the 3channel STK402-200 series. This means that 3-channel printed circuit boards can also be used for 2-channel products.
Miniature packages.
15 W/ch to 40 W/ch (THD = 0.4%, f = 20 Hz to 20 kHz); 46.6 mm × 25.5 mm × 8.
