STK7562F, STK7561A, Chopper Type Parallel 2-Output Voltage Regulators

Ordering number:ENN1773 Thick Film Hybrid IC STK7560 Series Chopper Type Parallel 2-Output Voltage Regulators Applications * Voltage regulat.
of Operation of Internal Blocks [OSC] External excitation type OSC circuit where the CMOS NAND gate-used ring OSC is formed by the 2-stage NAND circui.

Features

* ICs ha ving 2 outputs for microcomputer po wer suppl y (5V) and motor drive power supply (12, 15, 24, 36V) and being capable of deli vering 2 r egulated outputs fr om 1 rectifier.
* Good efficiency due to chopper type and no bea t trouble due to fixed oscillation type oscilla tor c

Applications

* Voltage regulator for printers, electronic typewriters, XY plotters.

STK7561A-SanyoSemiconDevice.pdf

This datasheet PDF includes multiple part numbers: STK7562F, STK7561A. Please refer to the document for exact specifications by model.

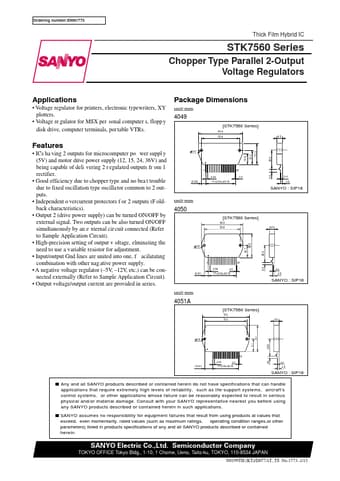

STK7562F Datasheet Preview Page 2 STK7562F Datasheet Preview Page 3
