STK7563J Chopper Type Parallel 2-Output Voltage Regulators

of Operation of Internal Blocks [OSC] External excitation type OSC circuit where the CMOS NAND gate-used ring OSC is formed by the 2-stage NAND circuit, delivering basic pulses. This circuit provides pulse width modulation where the frequency is constant and the duty only varies. [PWM] Pulse width .

STK7563J Features

* ICs ha ving 2 outputs for microcomputer po wer suppl y (5V) and motor drive power supply (12, 15, 24, 36V) and being capable of deli vering 2 r egulated outputs fr om 1 rectifier.

* Good efficiency due to chopper type and no bea t trouble due to fixed oscillation type oscilla tor c

STK7563J Datasheet (516.90 KB)

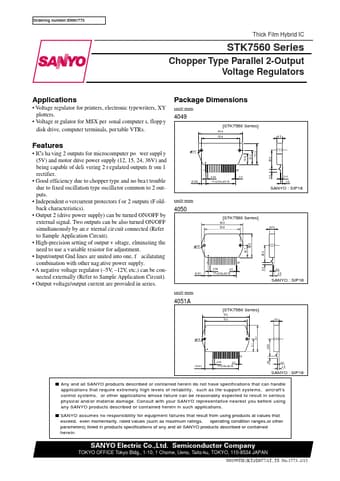

STK7563J Datasheet Preview — Preview of STK7563J PDF

Datasheet Details

Part number:

STK7563J

Manufacturer:

Sanyo Semicon Device

File Size:

516.90 KB

Description:

Chopper type parallel 2-output voltage regulators.
