STK760-221A-E Datasheet (Sanyo Semicon Device) - Thick-Film Hybrid IC Single-phase Rectification PFC Hybrid IC

STK760-221A-E, Thick-Film Hybrid IC Single-phase Rectification PFC Hybrid IC

No.

A1052-4/9 STK760-221A-E Test Circuit 1: IR, ICES A www.DataSheet4U.com A TR1 A B 18 15 D2 22 19 3 VCE, VR 15 B 2: VCE(sat) (Test by pulse) 100kΩ 4 6 1kΩ 8 0.47μF 100Ω 3 15 V IC 2 VCC=18V 18 3: VF (Test by pulse) A D2 A B 19 22 D3 15 18 3 V 15 B IF 4: VCC

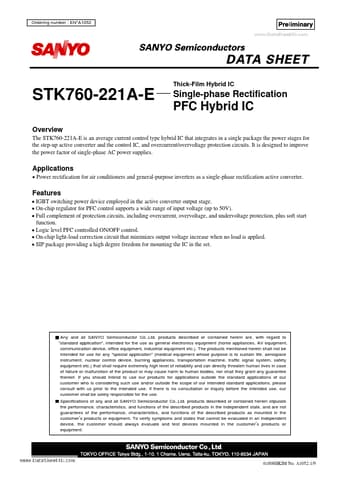

Ordering number : EN A1052 www.DataSheet4U.com Thick-Film Hybrid IC STK760-221A-E Overview Single-phase Rectification PFC Hybrid IC The STK760-221A-E is an average current control type hybrid IC that integrates in a single package the power stages for the step-up active converter and the control IC, and overcurrent/overvoltage protection circuits.

It is designed to improve the power factor of single-phase AC power supplies.

Applications Power rectification for air conditione

STK760-221A-E Features

* IGBT switching power device employed in the active converter output stage.

* On-chip regulator for PFC control supports a wide range of input voltage (up to 50V).

* Full complement of protection circuits, including overcurrent, overvoltage, and undervoltage protection, plus
